Introduction to SQL

SQL (Structured Query Language) is a powerful language used for interacting with databases. It allows you to perform various operations such as querying data, updating records, and managing database structures.

Here is an example SQL query that retrieves the total expenses for each account from a hypothetical journal_entries table, filtering for entries in the “Expense” account type during the third quarter of 2025, and ordering the results by total expense in descending order:

SELECT
    account_name,
    ROUND(SUM(amount), 2) AS total_expense
FROM journal_entries
WHERE account_type = 'Expense'
  AND entry_date BETWEEN '2025-07-01' AND '2025-09-30'
GROUP BY account_name
ORDER BY total_expense DESC;

🧩 Different Types of Databases¶

There are several types of databases, each with its own features and use cases. Some of the most popular databases include:

🧱 Relational Databases (SQL-based) - What we use in this course¶

Concept: Data stored in structured tables with predefined schemas; relationships enforced through keys (primary, foreign). Use case: Transactional systems, financial data, HR systems, enterprise analytics.

Popular Examples:

• SQLite: lightweight, file-based
• PostgreSQL: open-source, flexible extensions
• MySQL / MariaDB: web applications, e-commerce platforms
• Microsoft SQL Server: enterprise use (finance, accounting, corporate analytics)
• Oracle Database: large enterprise systems, ERP, and legacy corporate environments

🧮 NoSQL (Document) Databases¶

Concept: Schema-less or semi-structured; designed for flexibility, scalability, and unstructured data (text, JSON, IoT, etc.). Use case: Web apps, analytics pipelines, real-time systems.

Popular Examples:

• MongoDB: document-oriented (stores JSON-like documents)
• Firebase Firestore: cloud-based JSON storage for web/mobile apps
• Amazon DynamoDB: AWS-managed, key-value and document hybrid

🔑 Key-Value Stores¶

Concept: Data stored as simple key-value pairs, like a giant dictionary. Use case: Caching, session management, quick lookups, real-time data.

Popular Examples:

• Redis: in-memory, extremely fast; often used for caching analytics queries
• Memcached: simple, in-memory caching layer

📊 Columnar Databases¶

Concept: Data stored by columns instead of rows, which speeds up aggregation and analytical queries Use case: Business intelligence (BI), OLAP, dashboards, data warehouses.

Popular Examples:

• Google BigQuery: serverless, highly scalable warehouse
• Snowflake: cloud-native warehouse with data sharing features
• DuckDB: local, columnar formats ideal for Python analytics and SQLite-like use

🕸️ Graph Databases¶

Concept: Data stored as nodes (entities) and edges (relationships); optimized for relationship-heavy data.
Use case: Social networks, fraud detection, recommendation systems.

Popular Examples:

• Neo4j: most popular open-source graph database
• Amazon Neptune: AWS graph database supporting Gremlin and RDF/SPARQL
• ArangoDB: multi-model (graph + document)

🛡️ Key Features of Relational Databases¶

• Tables: Data is organized into tables (relations) with rows and columns.
• Schemas: Each table has a predefined schema that defines the structure and data types of its columns.
• Keys: Primary keys uniquely identify each row, while foreign keys establish relationships between tables.
• ACID Properties: Ensure reliable transactions (Atomicity, Consistency, Isolation, Durability).
• SQL Language: Standardized language for querying and manipulating data.

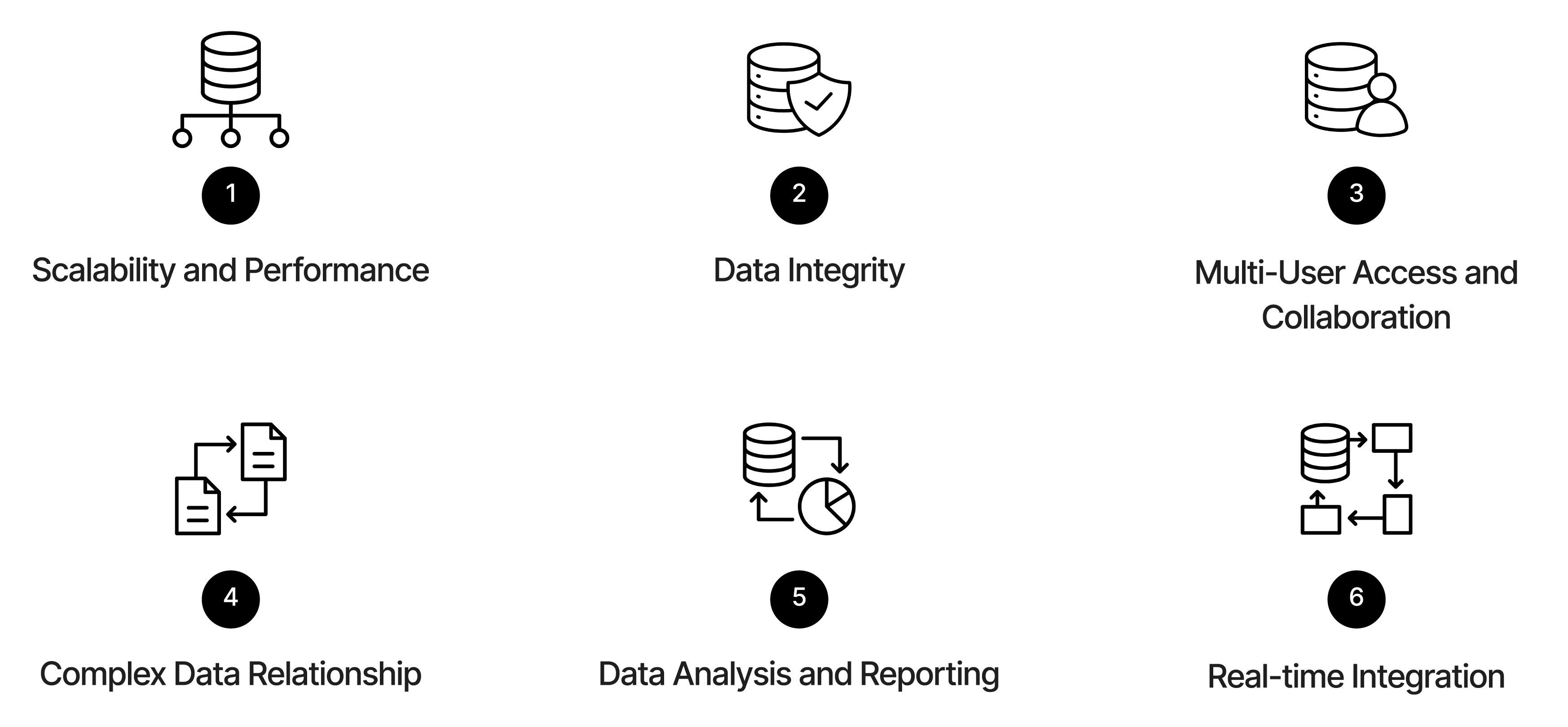

💡 Why Use SQL?¶

📜 The History of SQL¶

* MySQL was later acquired by Oracle Corporation in 2010, but it remains an open-source project maintained by the community.

1970 - Birth of Relational Databases¶

Dr. Edgar F. Codd, a computer scientist at IBM, published a groundbreaking paper titled “A Relational Model of Data for Large Shared Data Banks” in 1970. In this paper, Codd introduced the concept of the relational database model, where data is stored in tables (relations) with rows and columns.

Early 1970s - SEQUEL Language¶

In the early 1970s, IBM researchers Donald Chamberlin and Raymond Boyce developed a language called SEQUEL (Structured English Query Language) to manipulate and retrieve data.

1974 - System R Prototype¶

In 1974, IBM began developing System R, a prototype relational database management system (RDBMS) that implemented the SEQUEL language. SEQUEL was later renamed SQL.

1979 - Oracle’s Commercial RDBMS¶

In 1979, Oracle (then known as Relational Software, Inc.) released the first commercially available RDBMS based on SQL. This marked a significant milestone in the adoption of SQL as a standard for database management.

1986 - SQL Standardization¶

In 1986, the American National Standards Institute (ANSI) adopted SQL as the standard language for relational database management systems. This standardization helped promote the widespread adoption of SQL across different database systems.

💼 Open-Source vs Proprietary Databases¶

Open-Source means that the database software’s source code is freely available. Anyone can use, modify, and distribute it under a permissive license (e.g., MIT, Apache, GPL).

Proprietary (Commercial) means that the database is owned and licensed by a company. Users must pay for usage, support, or advanced features. The source code is closed.

🧪 Open-Source Software Characteristics¶

✅ Advantages:

• (Usually) Free to use and deploy.
• Huge community support.
• Transparency (you can inspect the engine).
• Runs on many platforms (Linux, macOS, Windows).

❌ Disadvantages:

• May require more in-house expertise.
• Enterprise-level features (HA, clustering, GUI tools) might need extra setup or third-party add-ons.
• Limited vendor-backed support unless you buy managed versions (e.g., AWS RDS PostgreSQL).

📚 Proprietary Software Characteristics¶

✅ Advantages:

• Professional vendor support and SLAs.
• Integrated ecosystems (GUI tools, ETL suites, BI connectors).
• Enterprise-grade reliability, clustering, and security.
• Easier compliance management (SOX, HIPAA, etc.).

❌ Disadvantages:

• Licensing cost can be high.
• Vendor lock-in (hard to migrate away).
• Custom extensions may not follow ANSI SQL strictly.

✅ Key Concepts¶

🗄️ Databases¶

A database is a structured collection of tables that store related data. A database management system (DBMS) is software that allows you to create, manage, and interact with databases.

🧷 Tables (Relations)¶

A table is a collection of related data organized in rows and columns. Each table has a name and consists of:

• Rows (Records): Each row represents a single entry or record in the table.
• Columns (Fields): Each column represents a specific attribute or field of the data.

🧾 Schemas¶

A schema defines the structure of a table, including the names and data types of its columns. It acts as a blueprint for how data is organized within the table.

🔒 Constraints¶

Constraints are rules applied to table columns to enforce data integrity. Common constraints include:

📇 Indexes¶

An index is a special data structure that improves the speed of data retrieval operations on a table. It works like an index in a book, allowing the database to quickly locate rows based on the values in indexed columns.

🔄 Transactions¶

A transaction is a sequence of one or more SQL operations that are treated as a single unit of work. The single unit must either be fully completed or fully rolled back to maintain data integrity. Transactions follow the ACID properties:

🖼️ Views¶

A view is a virtual table that is based on the result set of a SQL query. It allows you to simplify complex queries, encapsulate business logic, and provide a layer of abstraction over the underlying tables. Views do not store data themselves; they dynamically retrieve data from the base tables when queried.
